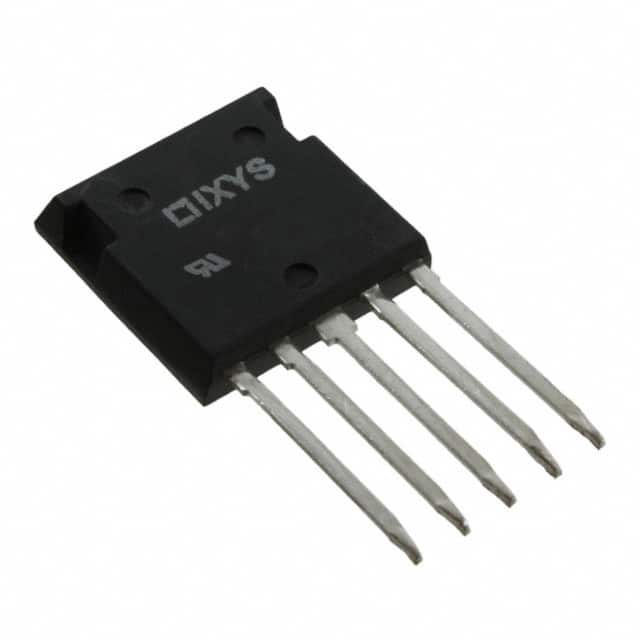

FII40-06D

Техническая спецификация
Manufacturer     IXYS
Series     -
Part Status     Active
IGBT Type     NPT
Configuration     Half Bridge
Voltage - Collector Emitter Breakdown (Max)     600V
Current - Collector (Ic) (Max)     40A
Power - Max     125W
Vce(on) (Max) @ Vge, Ic     2.2V @ 15V, 25A
Current - Collector Cutoff (Max)     600µA
Input Capacitance (Cies) @ Vce     1.6nF @ 25V
Input     Standard
NTC Thermistor     No
Operating Temperature     -55°C ~ 150°C (TJ)
Mounting Type     Through Hole
Package / Case     i4-Pac™-5
Supplier Device Package     ISOPLUS i4-PAC™
IGBT 600V 40A I-PACK - IGBT Array NPT Half Bridge 600V 40A 125W Through Hole ISOPLUS i4-PAC™
IGBT модули FII40-06D
Datasheet FII40-06D (PDF)
