AIHD03N60RFATMA1

Техническая спецификация
Manufacturer     Infineon Technologies
Series     -
Part Status     Active
IGBT Type     Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)     600V
Current - Collector (Ic) (Max)     5A
Current - Collector Pulsed (Icm)     7.5A
Vce(on) (Max) @ Vge, Ic     2.5V @ 15V, 2.5A
Power - Max     53.6W
Switching Energy     50µJ (on), 40µJ (off)
Input Type     Standard
Gate Charge     17.1nC
Td (on/off) @ 25°C     10ns/128ns
Test Condition     400V, 2.5A, 68 Ohm, 15V
Operating Temperature     -40°C ~ 175°C (TJ)
Mounting Type     Surface Mount

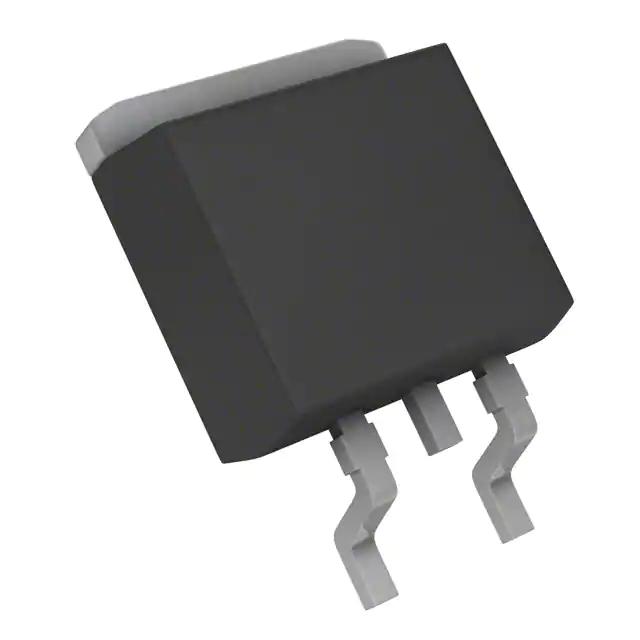

Package / Case     TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package     PG-TO252-3
IC DISCRETE 600V TO252-3 - IGBT Trench Field Stop 600V 5A 53.6W Surface Mount PG-TO252-3
IGBT транзисторы AIHD03N60RFATMA1
Datasheet AIHD03N60RFATMA1 (PDF)
